Adapters/Couplers,Splice Trays and Patch Cables are NOT included.
Description

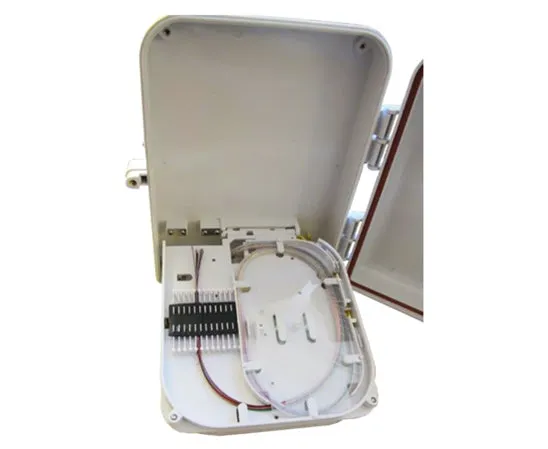

Wall Mounted, Plastic Fiber Distribution Unit , Flip-Up Patch Panel, Fixed Splice Tray, Holds 16 Adapters/Couplers with SC Footprint and 24 Splices
The FB23-4501WM24PL Splitter Terminal box is a rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application. Its multilayer design allows installers to access only the components necessary for initial installation or subscriber turn-up.
It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed. Applications: FTTH, FTTB, FTTC, Telecommunication Network, CATV, Local Area Network.
Features
- Indoor/Outdoor Rated
- Available 1x4, 1x8, 1x16 splitter as well as 2x4, 2x8, 2x16 splitter

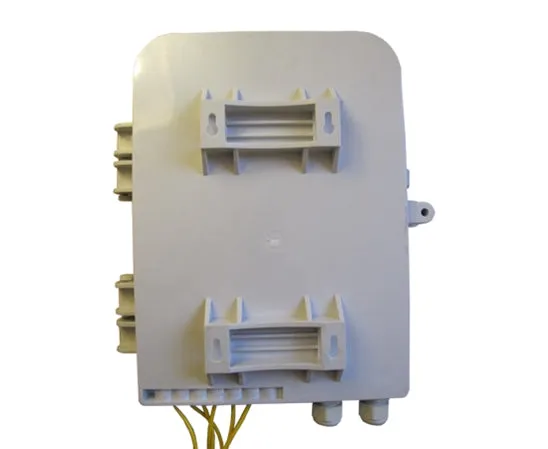

- Suitable for wall-mounting of pole-mounting applications
- Maximum of up to 16 pieces of FTTH drop cable or pigtails

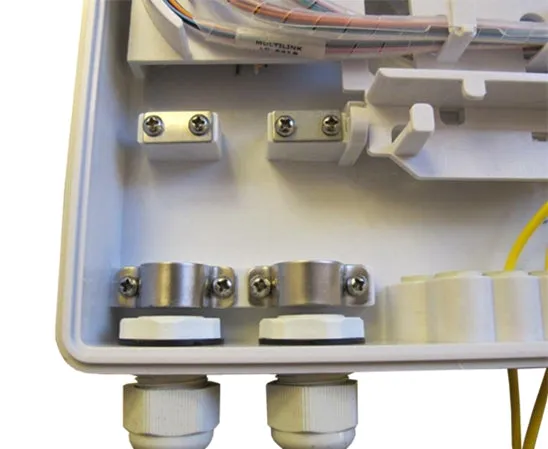

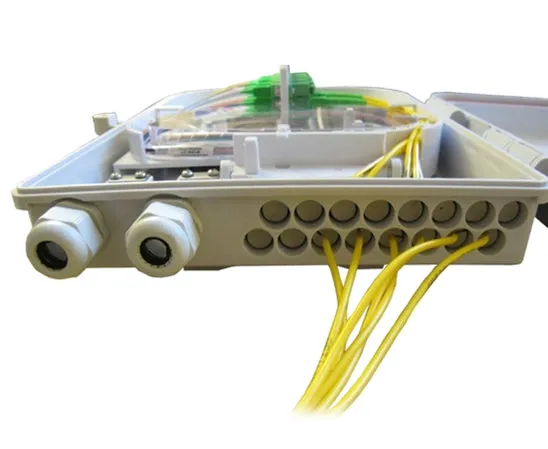

- 2 inlet ports and 16 outlet ports
Specifications
Capacity |
|
|---|---|
| Splices | 24 Splices |
| Adapters | (16) SC Simplex (Sold Separately) Or (16) LC Duplex with SC Simplex Footprint (Sold Separately) |
Dimensions |
|
|---|---|
| Depth | 3.75" |
| Height | 12" |
| Width | 10.25" |
| Weight | 4.5lbs. |
Physical Properties |
|
|---|---|
| Color | Black |
| Material | Powder Coated SPCC Steel |
