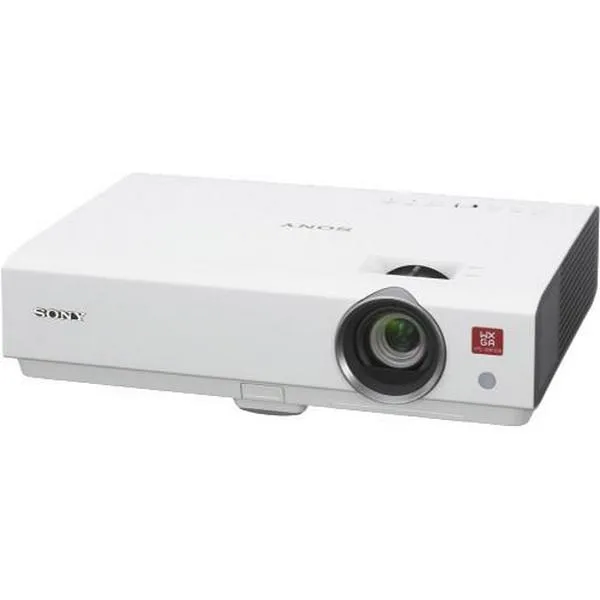

The business class VPL-DW126 2600 Lumens WXGA 3LCD Portable Projector from Sony is designed to be flexible - whether you plan to install it permanently it or take it on the road with you. A single lamp provides 2600 ANSI Lumens color brightness in Bright Mode, and a three-chip LCD imaging device renders a 1280 x 800 (WXGA) resolution, 16:10 "widescreen" aspect ratio image. Through scaling the projector can also support a range of non-native resolutions up to Full HD (1920 x 1080) for video and UXGA (1600 x 1200) for computer sources. The lens features 1.3x optical zoom with a 1.36:1 to 1.77:1 throw ratio to help you get the desired image size in cases where placement options are limited.
Multiple ports allow the VPL-DW126 to receive video and audio from a variety of sources, including computers, Blu-ray Disc and DVD players, document cameras, HDTV devices, and more. It features a VGA port, an HDMI port, and composite video port as well as a 3.5mm mini jack input for analog audio. Alongside the A/V ports, there is an Ethernet port for network control or delivering presentations from any computers on the same network. Finally, two USB ports allow you to connect the projector to a computer, give "PC-Free" slideshows directly from FAT32-formatted USB media, or install the included IFU-WLM3 Wi-Fi dongle.
Specifications
General | |
Device Type |
3LCD projector - 720p |
Built-in Devices |
Speaker |
Networking |
802.11b/g/n, Ethernet |
First Seen On Google Shopping |
Jul-13 |
Projector | |
Brightness |
2600 Lumens |
Brightness (Color) |
2600 Lumens |
Brightness (Reduced) |
1500 Lumens |
Contrast Ratio |
2500:01:00 |
Image Size |
29.9 in - 300 in |
Throw Ratio |
1.36 - 1.77:1 |
Resolution |
WXGA - WXGA (1280 x 800) (native) / 1600 x 1200 (resized) |
Native Aspect Ratio |
16:10 |
Display Format |
3,072,000 pixels (1280 x 800) x 3 |
Max Sync Rate (V x H) |
92 Hz x 92 kHz |
Lamp Type |
Ultra high-pressure mercury 210 Watt |
Lamp Life Cycle |
Up to 3000 hour(s) - normal mode Up to 7000 hour(s) - economic mode |
OSD Languages |
Hungarian, Indonesian, Thai, Chinese (traditional), Chinese (simplified), Vietnamese, Farsi, English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Turkish, Arabic, Japanese, Korean |
Features |
Eco-Mode technology, Closed Caption, 3LCD Technology, BrightEra, PJlink, 16:10 aspect ratio support, Automatic Brightness Adjustment, Lamp Dimming Function, 12-bit 3D Gamma Correction |
Lens | |
Focus Type |
Manual |
Zoom Type |
Manual |
Zoom Factor |
1.3x |
Keystone Correction Direction |
Vertical |
Vertical Keystone Correction |
-1 |
Video Input | |
TV System |
NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, NTSC 3.58 |
Analog Video Signal |
RGB, composite video, component video |
Video Interfaces |
VGA, HDMI, component video, composite video |
Video Modes |
1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i |
LAN and Wireless Image Transferring Protocols |
IEEE 802.11b, IEEE 802.11g, wired LAN, IEEE 802.11n |
Speakers | |
Type |
Integrated |
Sound Output Mode |
Mono |
Output Power / Channel |
1 Watt |
Speakers |
1 x mixed channel |
Expansion / Connectivity | |
Interfaces |
1 x component video / RGB input - 15 pin HD D-Sub (HD-15) 1 x audio line-in - mini-phone stereo 3.5 mm 1 x HDMI - 19 pin HDMI Type A 1 x composite video input - RCA 1 x network - RJ-45 1 x USB - 4 pin USB Type B 1 x USB - 4 pin USB Type A |
Miscellaneous | |
Included Accessories |
Carrying case, lens cover, USB wireless network adapter, wireless remote control, lithium coin cell battery |
Cables Included |
1 x VGA cable |
Power | |
Nominal Voltage |
AC 120/230 V (50/60 Hz) |
Power Consumption Operational |
294 Watt |
Power Consumption Stand by |
5.7 Watt |
Software / System Requirements | |
Software Included |
Projector Station |
Dimensions & Weight | |
Width |
12.4 in |
Depth |
9.1 in |
Height |
3 in |
Weight |
5.73 lbs |
Environmental Parameters | |
Min Operating Temperature |
32 °F |
Max Operating Temperature |
95 °F |
Humidity Range Operating |
20 - 80% (non-condensing) |
Universal Product Identifiers | |
Brand |
Sony |
Part Numbers |
VPL-DW126, VPL-DW126-EDU-GOV, VPL-DW126/US, VPLDW126 |
GTIN |
27242869783 |
