Overview

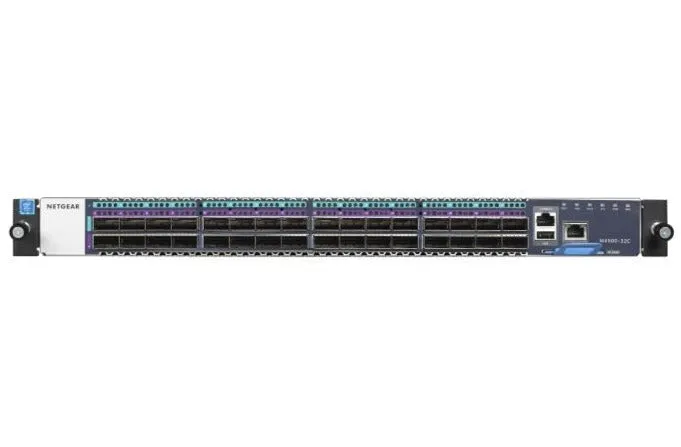

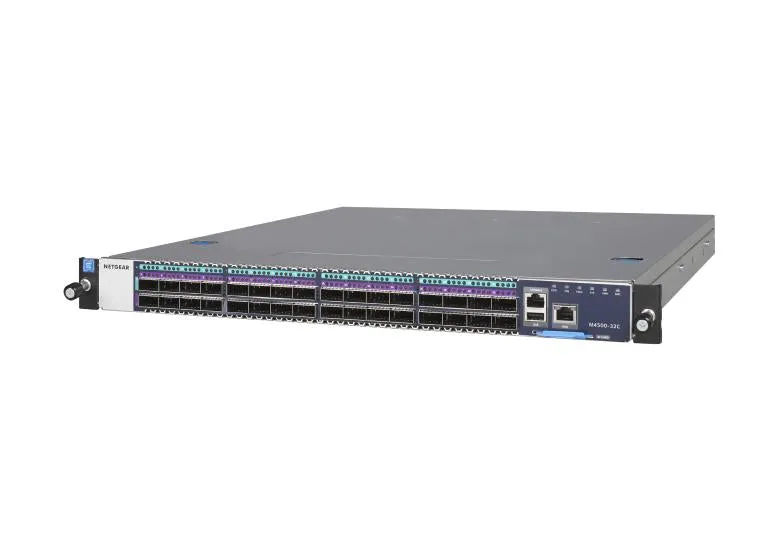

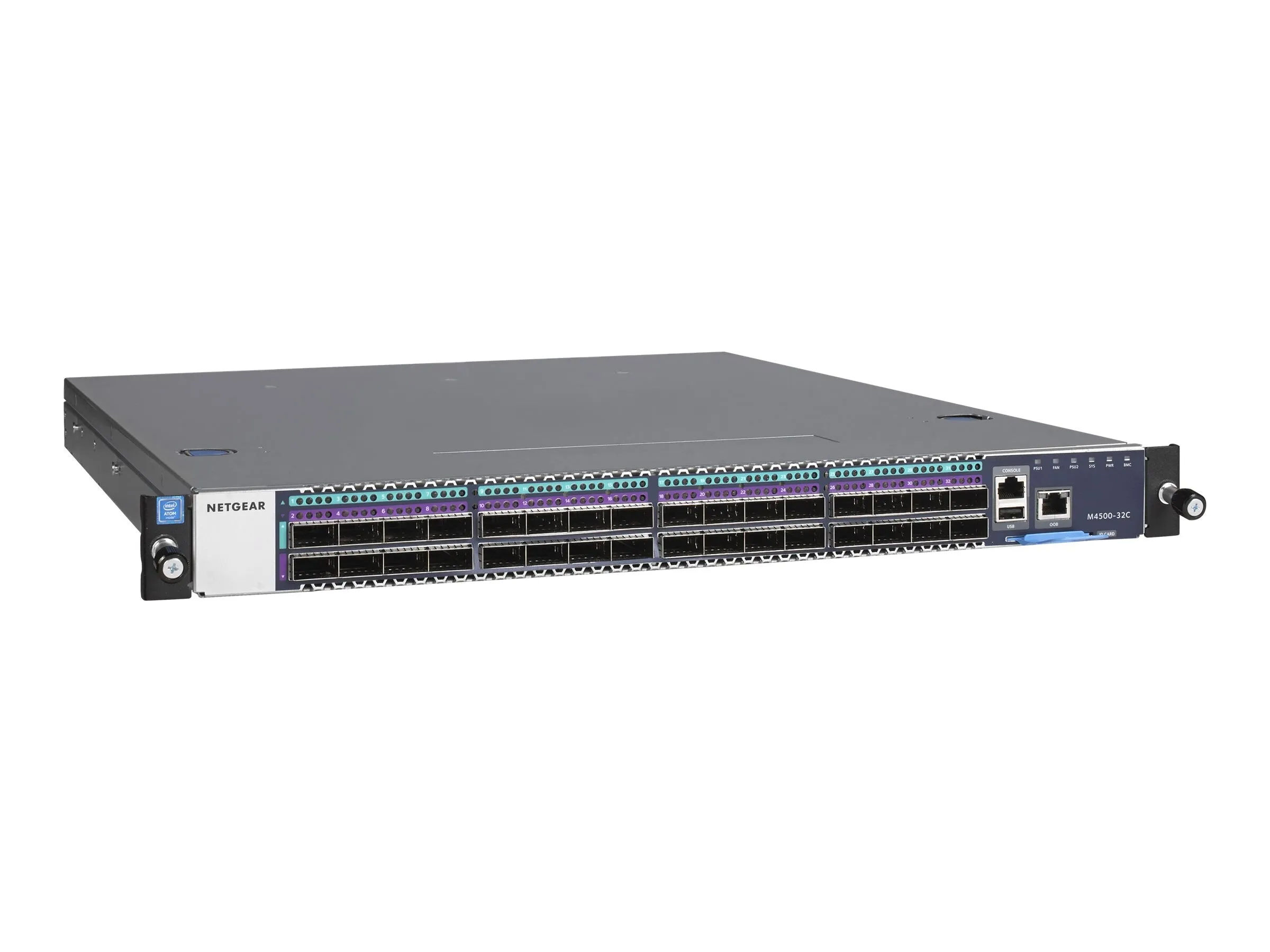

Netgear M4500-32C 32-port Gigabit Ethernet Managed Switch - CSM4532-100NAS
Specification
| Specification: | |
|---|---|
General Information |
|
|
Product Condition:
|
Brand New
|
|
Manufacturer:
|
Netgear
|
|
Manufacturer Part:
|
CSM4532-100NAS
|
|
Product Series:
|
M4500
|
|
Model Number:
|
M4500-32C
|
|
Product Name:
|
Netgear M4500-32C 32-port Gigabit Ethernet Managed Switch
|
|
Product Type:
|
Layer 3 Switch
|
Interfaces/Ports |
|
|
Total Number of Network Ports:
|
32
|
|
Modular:
|
Yes
|
|
Expansion Slots/Ports:
|
32 x 100 Gigabit Ethernet Expansion Slot
|
|
Expansion Slot Type:
|
100GBASE-X QSFP28
|
Media & Performance |
|
|
Media Type Supported:
|
Twisted Pair
|
|
Ethernet Technology:
|
100 Gigabit Ethernet
|
|
Network Technology:
|
100GBase-X
|
I/O Expansions |
|
|
Number of Total Expansion Slots:
|
32
|
|
Expansion Slot Type:
|
QSFP28
|
Network & Communication |
|
|
Layer Supported:
|
3
|
Management & Protocols |
|
|
Manageable:
|
Yes
|
|
Management:
|
Command line interface (CLI), SSH, SNMP, sFlow, and MLAG
|
Memory |
|
|
System Memory:
|
8 GB RAM
|
|
Storage:
|
128 GB SSD
|
Power Description |
|
|
Power Source:
|
Power Supplies
|
|
Power consumption (Max.):
|
426 Watts
|
Physical Characteristics |
|
|
Compatible Rack Unit:
|
1U
|
|
Form Factor:
|
Rack-mountable
Rail-mountable |
|
Unit Dimensions (WxDxH):
|
17.32 x 20.0 x 1.7"
|
|
Weight:
|
21.54 lbs
|
What’s Included |
|
|
Package Content:
|
Netgear M4500-32C 32-port Gigabit Ethernet Managed Switch

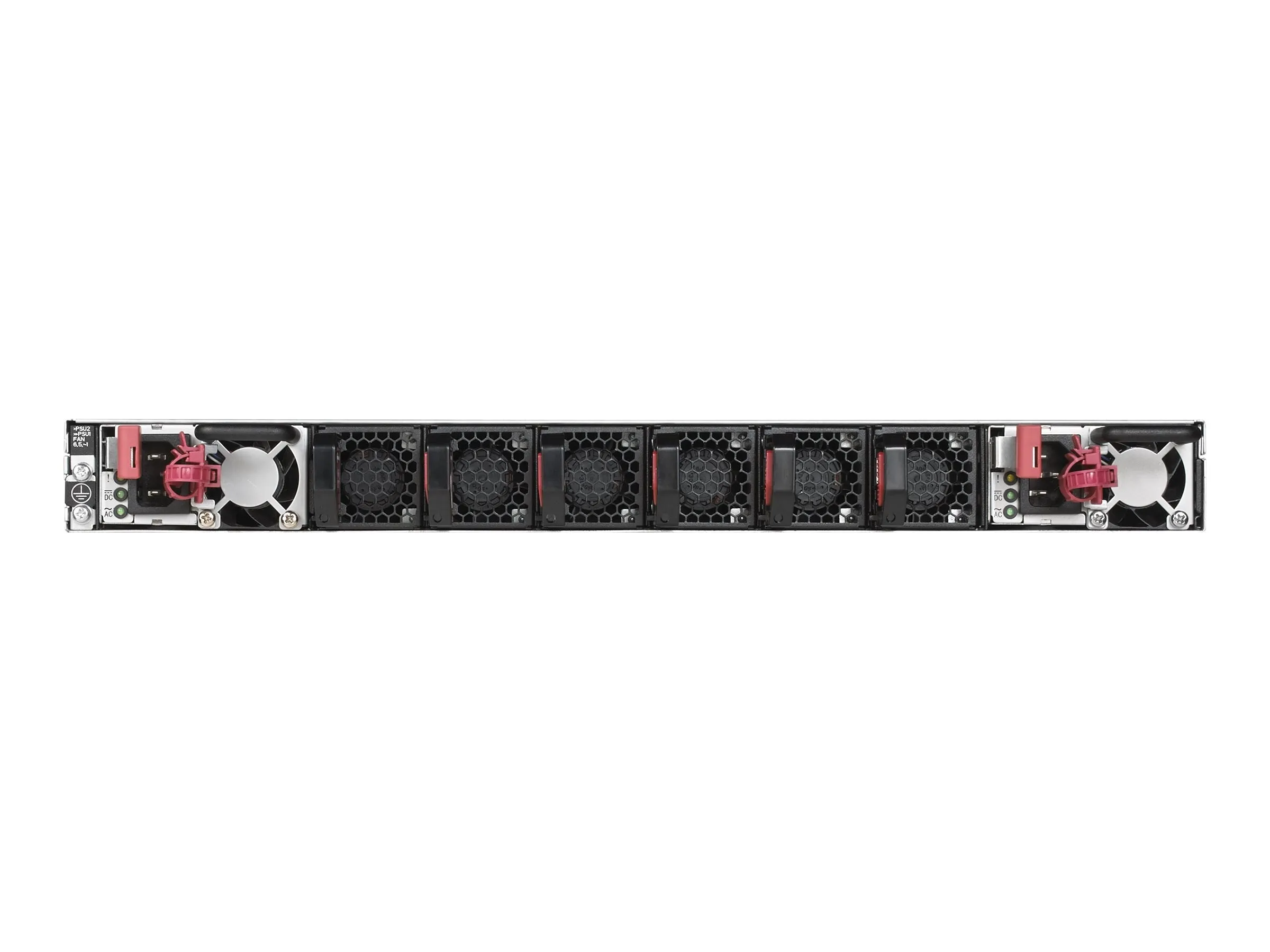

Two power supplies APS750W Six fan trays AFT402 already installed Console cable with one DB9 female connector and one RJ-45 serial connector Power cord(s) Two mounting ears and screws for rack mounting (front) One set of rail kits for rack mounting (back) Installation guide |
Warranty & Returns
Warranty Info
- Limited Warranty period (parts & labor): Limited Lifetime Warranty
- Netgear Support Phone: 800-211-2069
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
