Product Details
＋

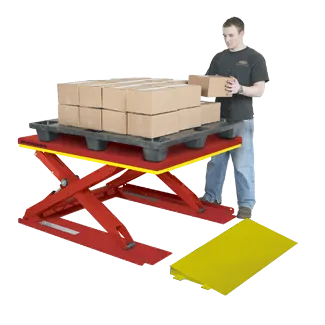

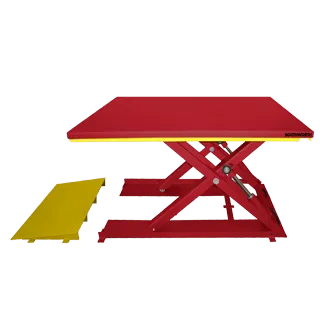

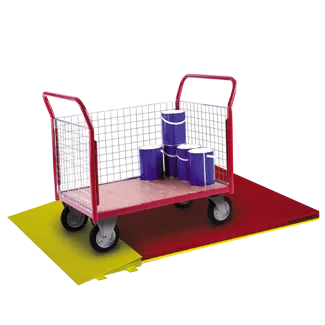

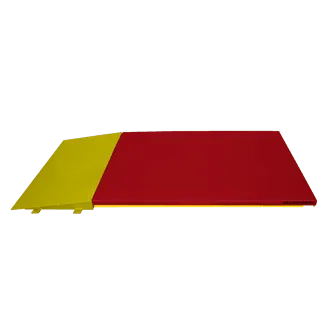

Get the advantage of four sided accessibility without the expense or hassle of digging a pit for your lift table. LiftMat Low- Profile lift tables have a collapsed height as low as 3.25 inches. An optional ramp allows the low-profile lift table to be fed with a hand pallet truck.
A full perimeter Toe Guard stops the descent of the lift table when it comes into contact with any obstruction.
LiftMat Low Profile Lift tables are best suited to applications where the load is evenly distributed.
In addition to standard platforms, LiftMat Low Profile Lift Tables can also be equipped with turntable tops.
Features
- 2,200 Lb. Capacity
- 3.25" Lowered Height
- 31.5" Raised Height
- 24" x 66" or 48" x 72" Platforms Available
Technical Data
| Model Number |
Load Capacity |
Raised Height |
Lowered Height |
Standard Base & Platform | Maximum Platform |
Motor HP |
Voltage/ Phase/HZ |
Shipping Weight |
Budget Range |
|---|---|---|---|---|---|---|---|---|---|
| LM2.2-28 | 2200 lbs | 31.5" | 3.25" | 24" x 66" | 48" x 96" | 1.0 | 115/1/60 | 600 lbs | $4,900-$5,500 |
