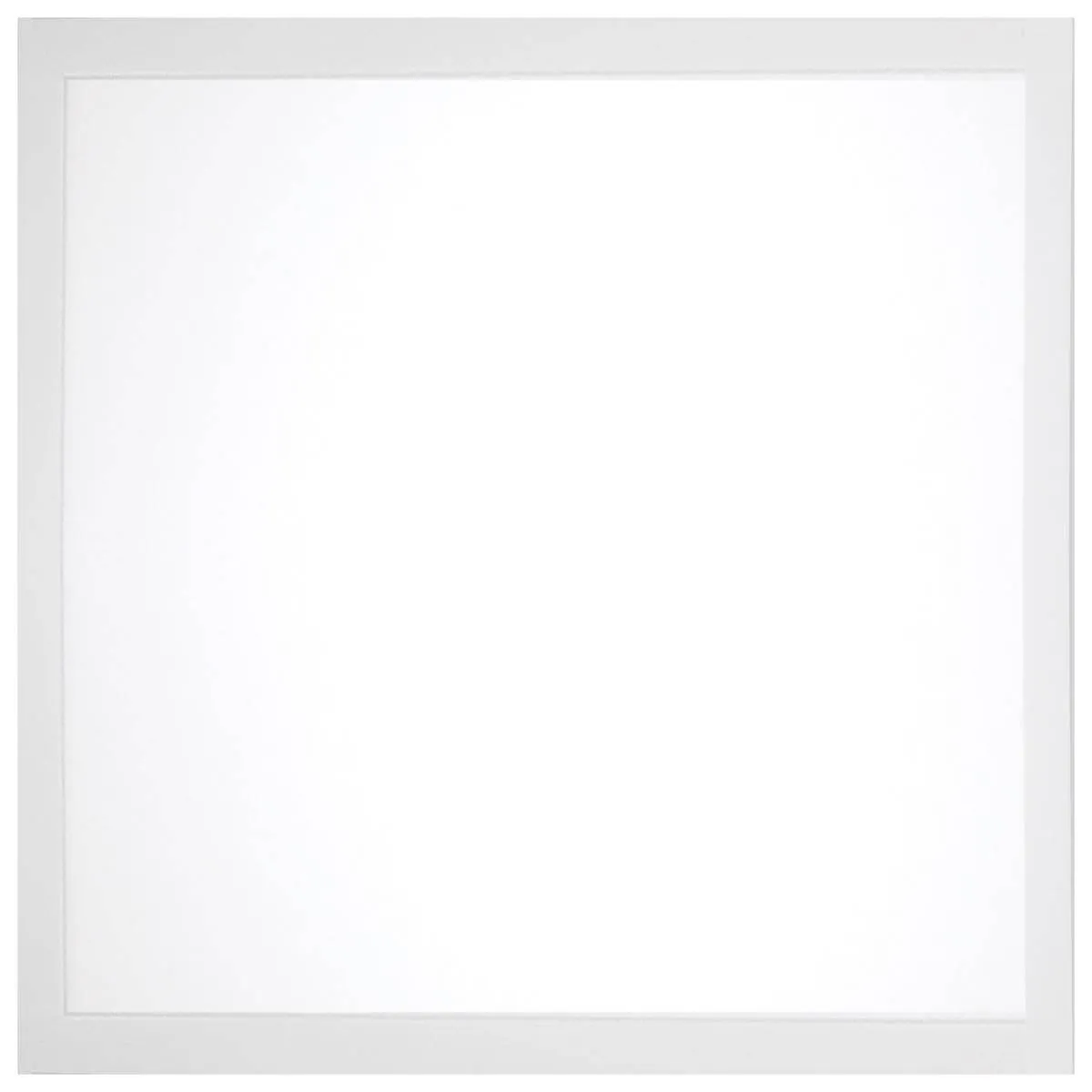

LED Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 120-277 Volt; ColorQuick Technology; PowerQuick Technology
The SATCO|NUVO LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making these fixtures extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Our integrated emergency battery backup models, with a 90-minute run time, will make you feel safe and sound just when you need it the most. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.
- 3500K/4000K/5000K CCT Selectable
- 20W/30W/40W Wattage Selectable
- Backlit LED Technology
- Flicker Free, Even Light Distribution
- 0-10V Dimmable
- 50,000 average rated hours of use
- DLC Listed
- Title 20 Complaint
| Status | Active |
| Fixture Type | Backlit Flat Panel |
| Finish | White |
| Wattage | 20W/30W/40W |
| Lumen Output | 2200L-4600L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| IP Rating | IP20 |
| Indoor or Outdoor Fixture | Indoor |
| Technology | LED |
| Wattage | 20W/30W/40W |
| Lumen Output | 2200L-4600L |
| CCT (Kelvin) | 3500K/4000K/5000K |
| Color Temperature | Warm to Cool White |
| CRI | 80 |
| Voltage | 120V-277V |
| Beam Angle | 120 |
| Rated Hours | 50000 |
| Operating Temperature | -17C ( 1.4F) to 45C ( 113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only |
| Photocell or Sensor | No Photocell |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Surge Protection | Built-in surge protection - 2KV |
| Weight (lb.) | 4.85 |
| IP Rating | IP20 |
| Material | Aluminum / Steel |
| Height (in.) | 1.5 |
| Width (in.) | 23.75 |
| Length (in.) | 23.75 |
| Safety Listing | cETLus |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | S-GXP8L0 |
| NSF Approved | Yes |
| Air Tight Rated | No |
| IC Rated | Yes |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | Yes |
| SDS Sheet | LED Fixture |
| Each UPC | 045923657078 |
| Each Quantity | 1 |
| Each Length (in.) | 25.00 |
| Each Width (in.) | 2.56 |
| Each Height (in.) | 25.20 |
| Each Weight (lb.) | 6.55 |
