Product Details
＋
Adapter panels and splice trays NOT included
This fiber patch panel is only compatible with our FB24- adapter panel inserts and our FB25-3999STP12 Splice Trays. To find out more, give us a call or email us.
Description

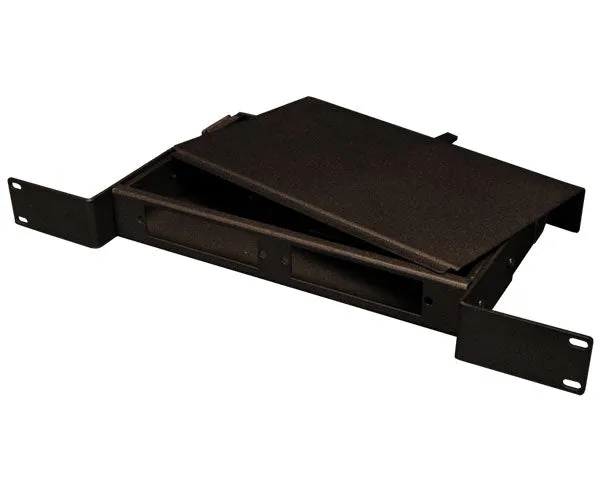

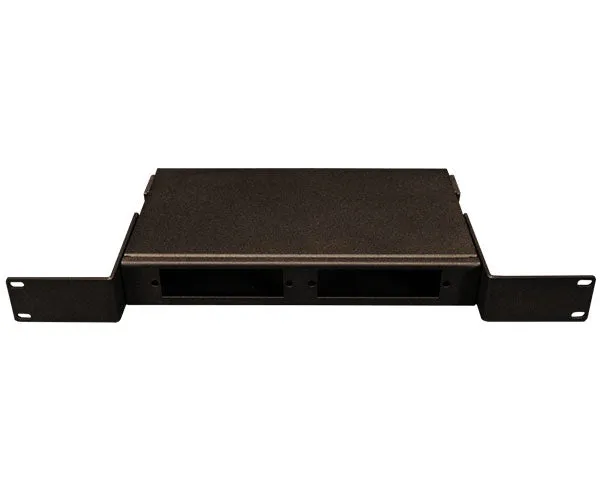

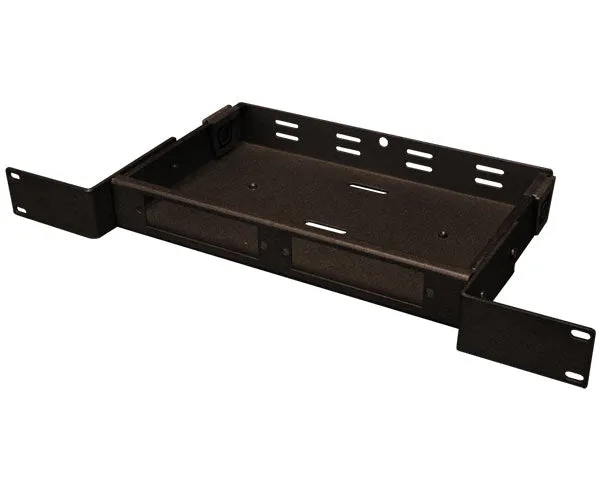

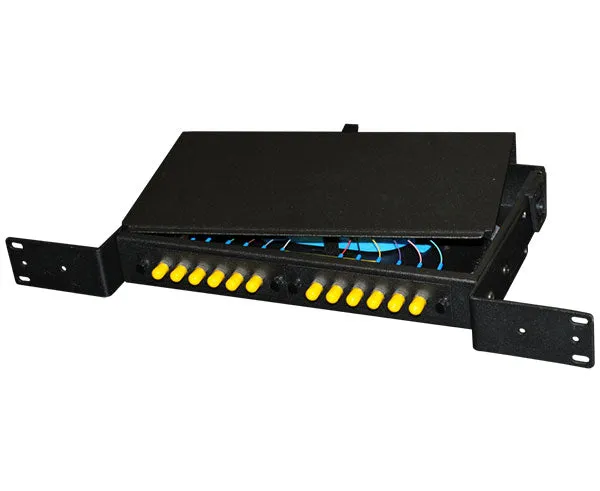

Fiber Patch and Splice Panel, Fixed Top-Load, 1RU, Holds 2 Adapter Panels and 1 Splice Tray with 12 Splice Capacity, Black
This rack mount fiber patch panel is 1 Rack Unit (1RU) in height and made for a 19" or 23" rack width. The fiber housing features a slide-off cover, 2 fixed bulkhead positions and 2 captive grommets for cable entry. Included are two universal 19™ or 23™ mounting supports. The fiber enclosure can hold a 12 fiber splice tray (FB25-3999STP12), sold separately. The main unit is offset 15/16" from the front of the mounting brackets.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with and
Features
Features
- Can be ordered fully terminated with cabling or pigtails.
- Mounting hardware supplied for 19" or 23" mounting.
Specifications
Specifications
Capacity |
|
|---|---|
| Splice Trays | (1) 12 Fiber Splice Tray (FB25-3999STP12 - Sold Separately) |
| Panels | (2) FB24 Series Adapter Panels (Sold Separately) |
Dimensions |
|
|---|---|
| Depth | 7.68" |
| Height | 1.72" |
| Width | 12.25" |
| Weight | 5.1 lbs |
Physical Properties |
|
|---|---|
| Material | Powder Coated Steel |
| Color | Black |
What’s In The Box
What’s In The Box
- (1) Rack Mount FDU 1RU
- (2) universal 19™ or 23™ mounting supports
