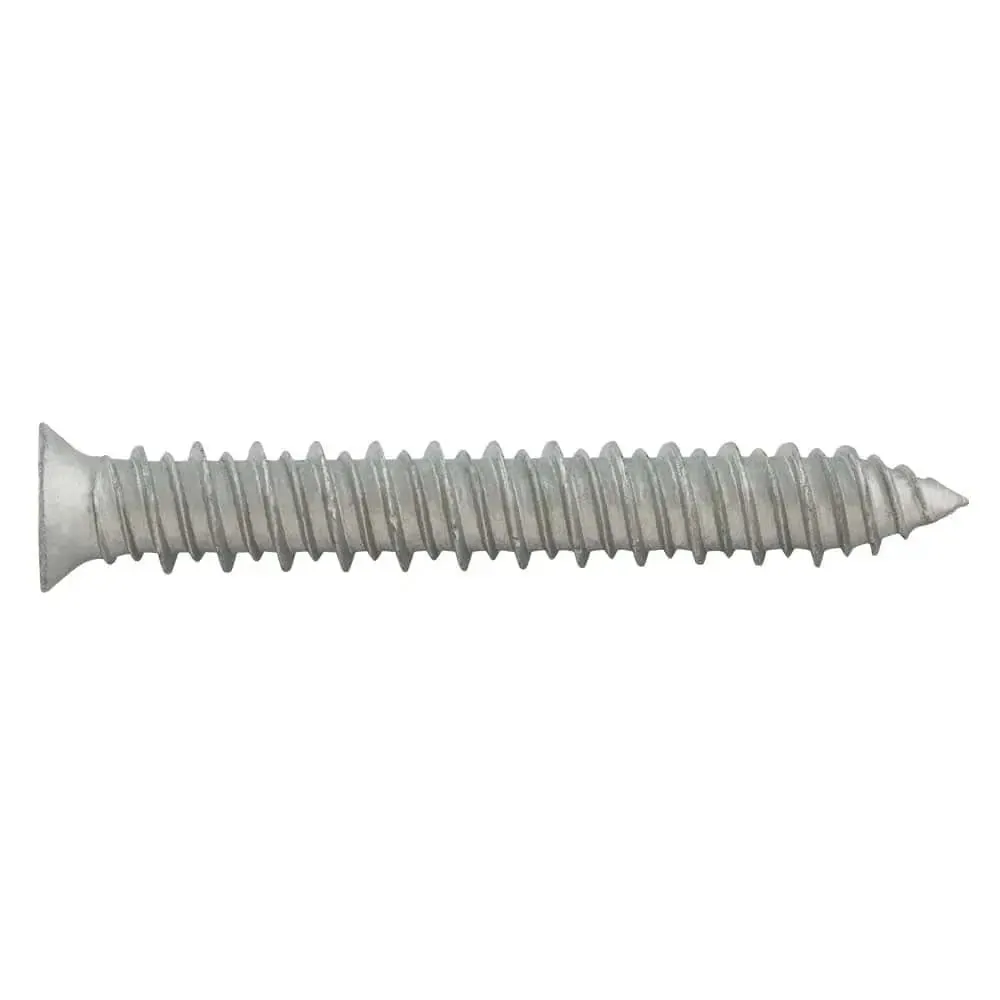

The UltraCon fastening system is a complete family of screw anchors for light to medium duty applications in concrete and masonry block base materials. UltraCon is available in 5/16" diameter which provides increased shear and tensile strength to meet the needs of more demanding applications. The UltraCon is fast and easy to install and provides a neat, finished appearance. The UltraCon screw anchor is available in carbon steel with a Stalgard coating in silver color that provides additional corrosion resistance.
Features
- 5/16" diameter provides increased shear and tensile strength
- Stalgard coating provides 1000 hours of salt spray protection when tested in accordance with ASTM B117
- Available in various head styles to fit the intended application
- Installed with a standard ANSI bit
Applications
- Window frames
- Shelving and racking
- Pipe support
- Metal door frames
- Shutters and guards
- Cable trays
Specifications
- Head Type: Flat TrimFit
- Anchor Material: Carbon Steel
- Quantity: 500
- Diameter: 5/16"
- Length: 3-3/4"
- Drive Type: Phillips
- Driver Size: #3
- Drill Bit Difference: 1/4"
- Approval & Listing: Tested in accordance with ASTM E488, Florida Statewide Product Approval FL29068.2, Miami-Dade County Notice of Acceptance (NOA) No. 21-0113.01
