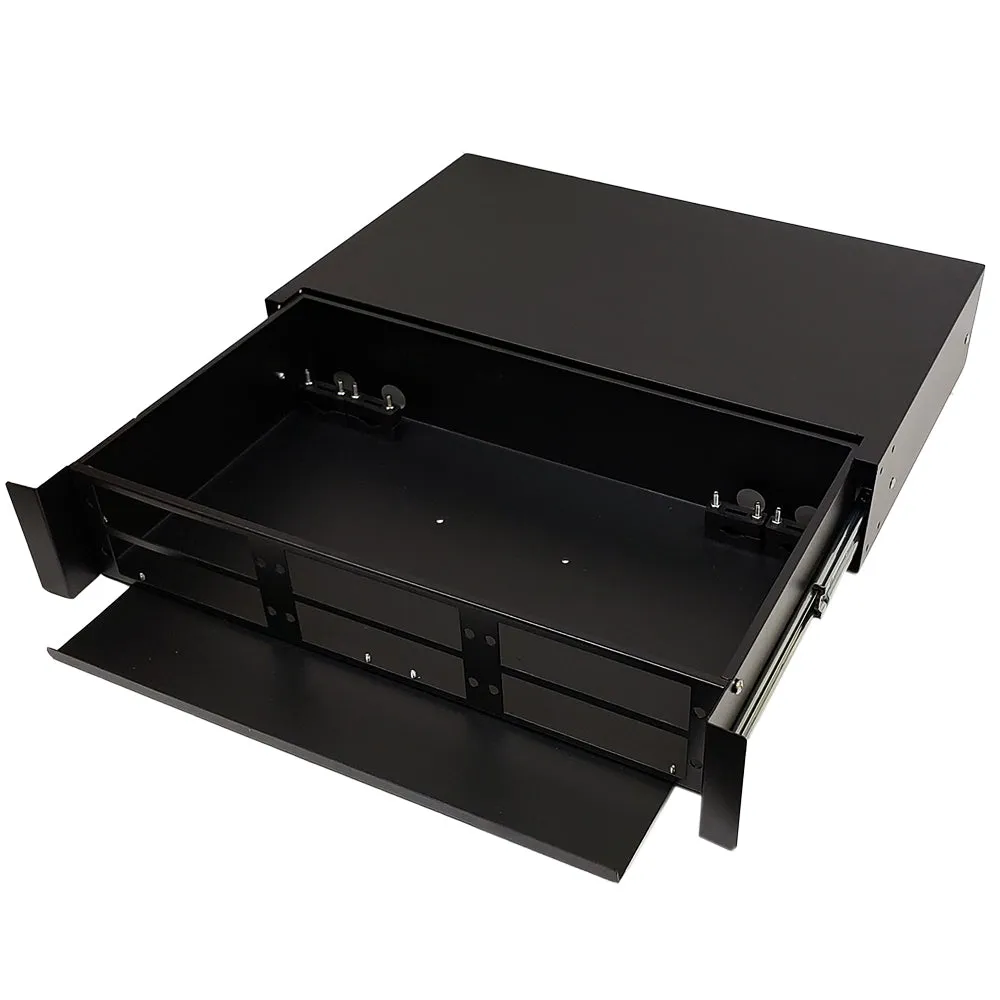

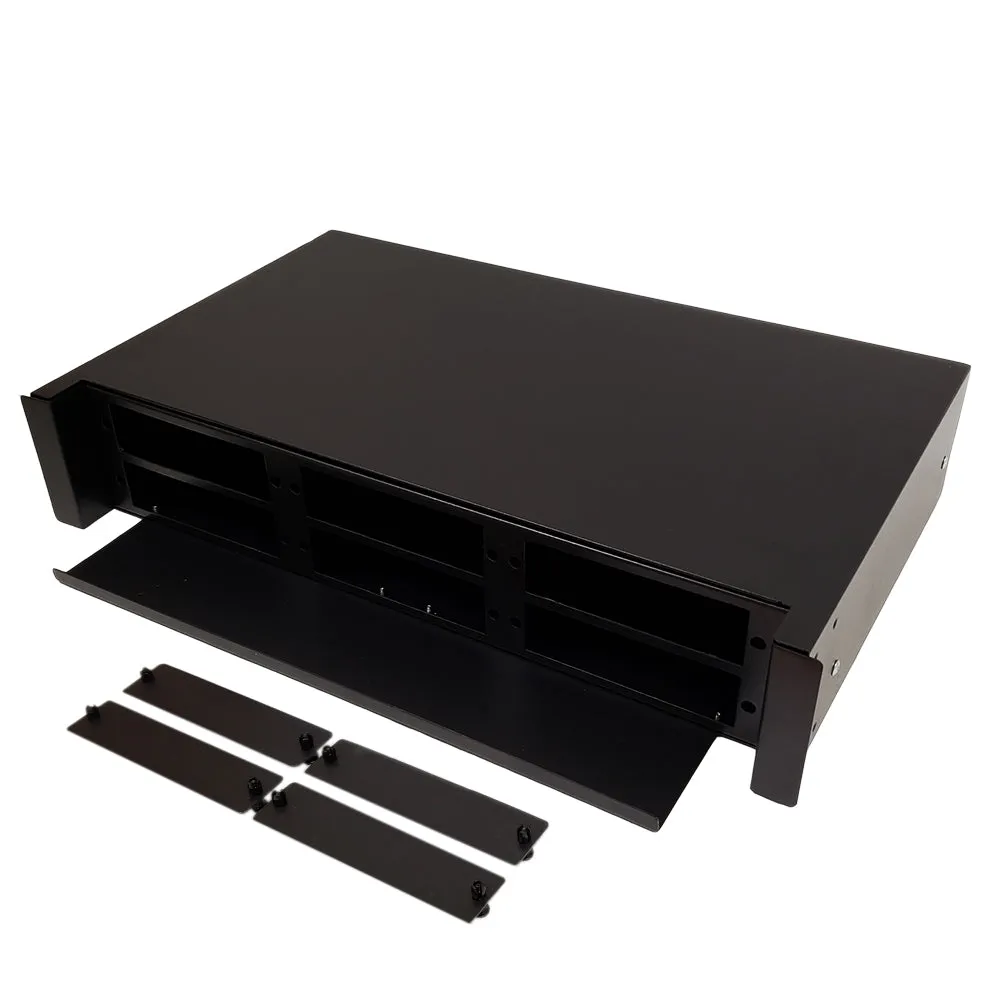

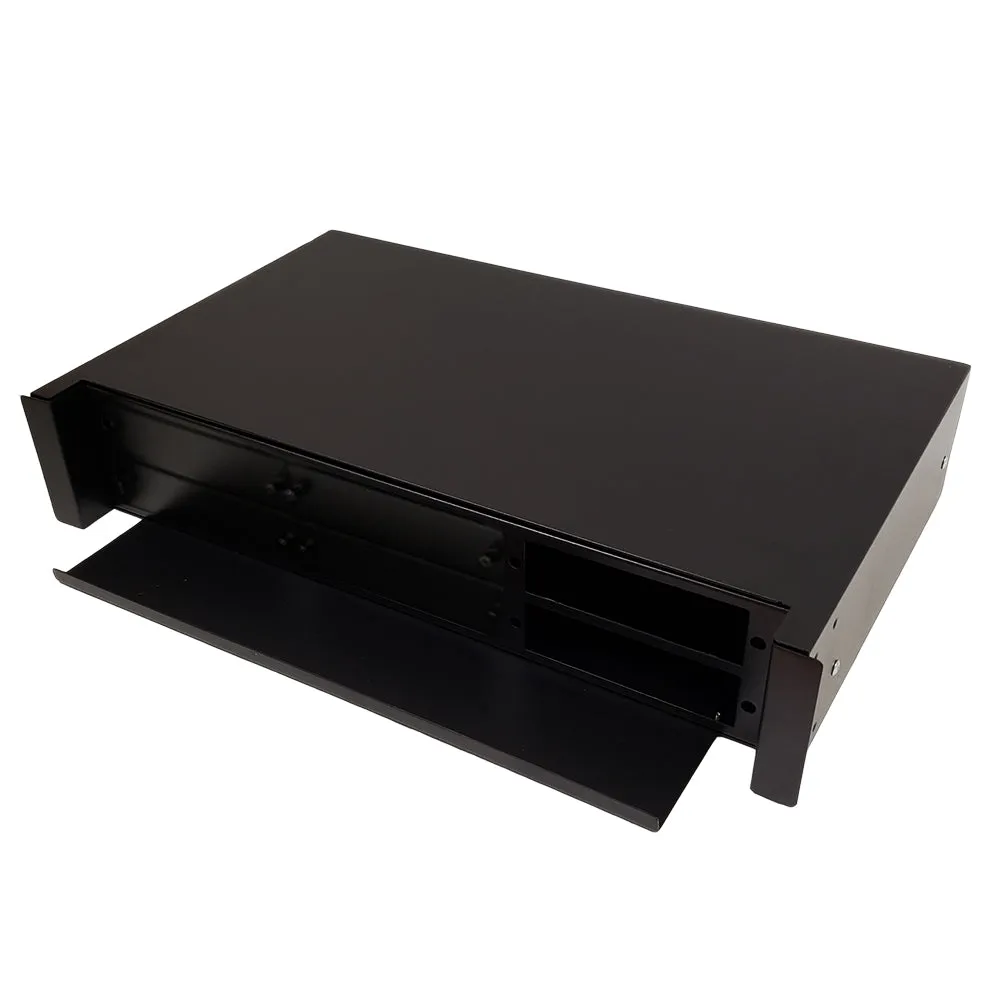

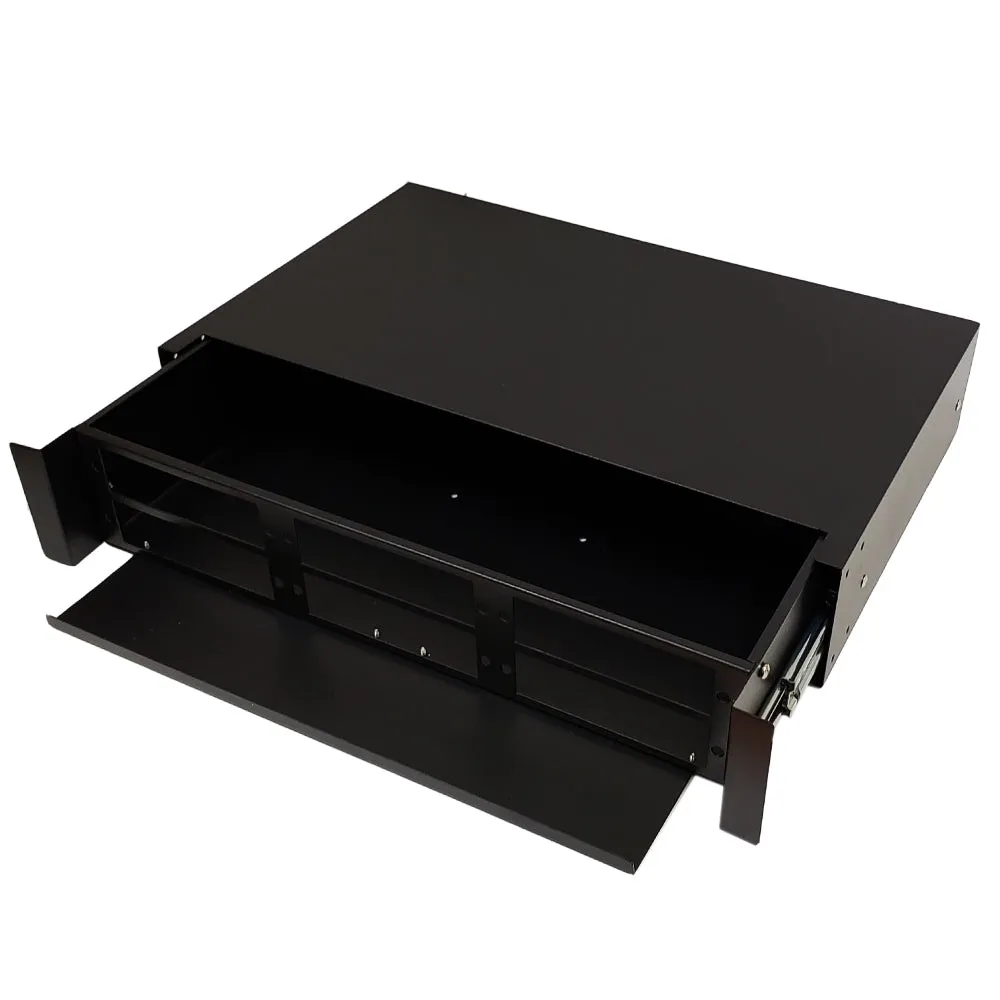

This 19 inch rackmount fiber optic enclosure is 2U in height, has a latching slide out tray for easy access and accepts up to six LGX fiber MPO cassettes or LGX adapter panels. It is used to interconnect house LGX cassettes or fiber splices and terminated fiber cables. The unit comes with four 24-fiber splice trays, 96 splice sleeves, four blank adapter panels, mounting ears, cable ties and tie-downs. Fiber adapter panels and LGX cassettes are sold separately.
| Physical Characteristics | |
|---|---|
| Color | Black (Powder Coat) |
| Material | Steel |
| Product Dimensions | 19"W x 12.5" L x 2U H |
| Rackmountable | Yes |
| Compatible Adapter Panels and LGX Cassettes | |
| PP-FC104-6BK | |
| PP-FC108-6BK | |
| PP-FC108-12BK | |
| PP-FC200-6BK | |
| PP-FC200-12BK | |
| PP-FC204-6BK | |
| PP-FC204A-6BK | |
| PP-FC208-6BK | |
| PP-FC208-12BK | |
| PP-FC208A-6BK | |
| PP-FC208A-12BK | |
| PP-FC404-6BK | |
| PP-FC408-6BK | |
| PP-FC408-12BK | |
| PP-FC504-6BK | |
| PP-FC504-12BK | |
| PP-FC604-6BK | |
| PP-FC604-12BK | |
| PP-FC604A-6BK | |
| PP-FC604A-12BK | |
| PP-FC804-6BK | |
| PP-FC804-12BK | |
| PP-FC1015U-BK | |
| PP-FC1025U-BK | |
| PP-FC1015A-BK | |
| PP-FC1025A-BK | |
| PP-FC1315-BK | |
| PP-FC1325-BK | |
| PP-FC1415-BK | |
| PP-FC1425-BK | |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 14.25 lbs [6.4 kg] |
| Contents | |

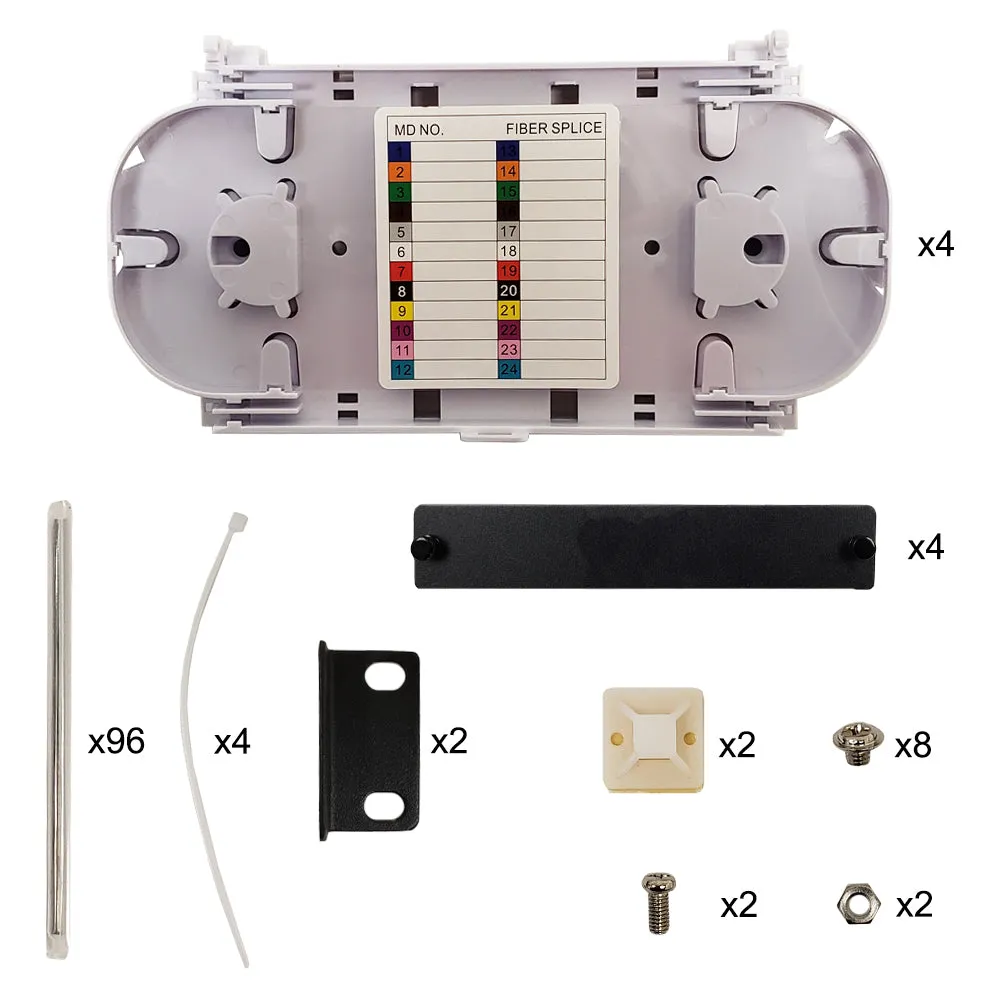

| Included in Package | 1 - Fiber Enclosure 4 - Blank LGX panels 2 - Mounting Ears 4 - Cable Ties 4 - Splice Trays 2 - Adhesive 96 - Splice Sleeves |
