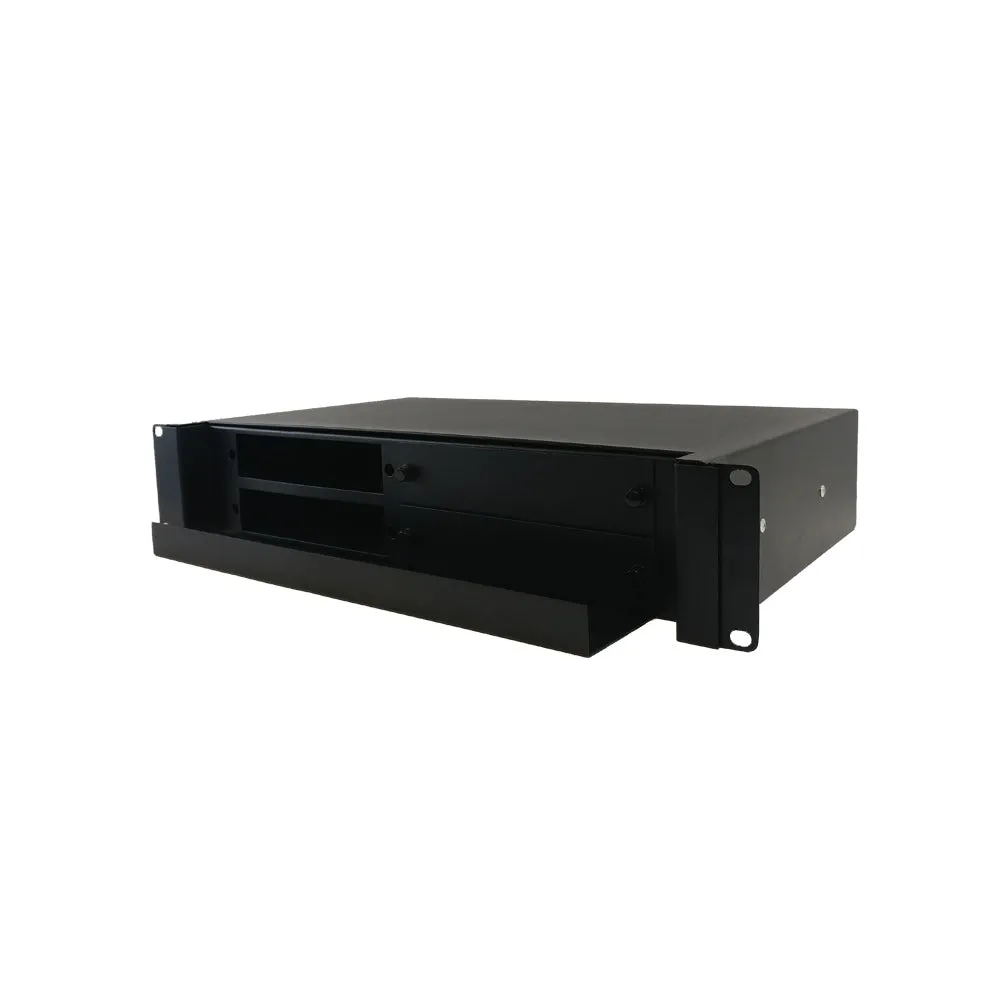

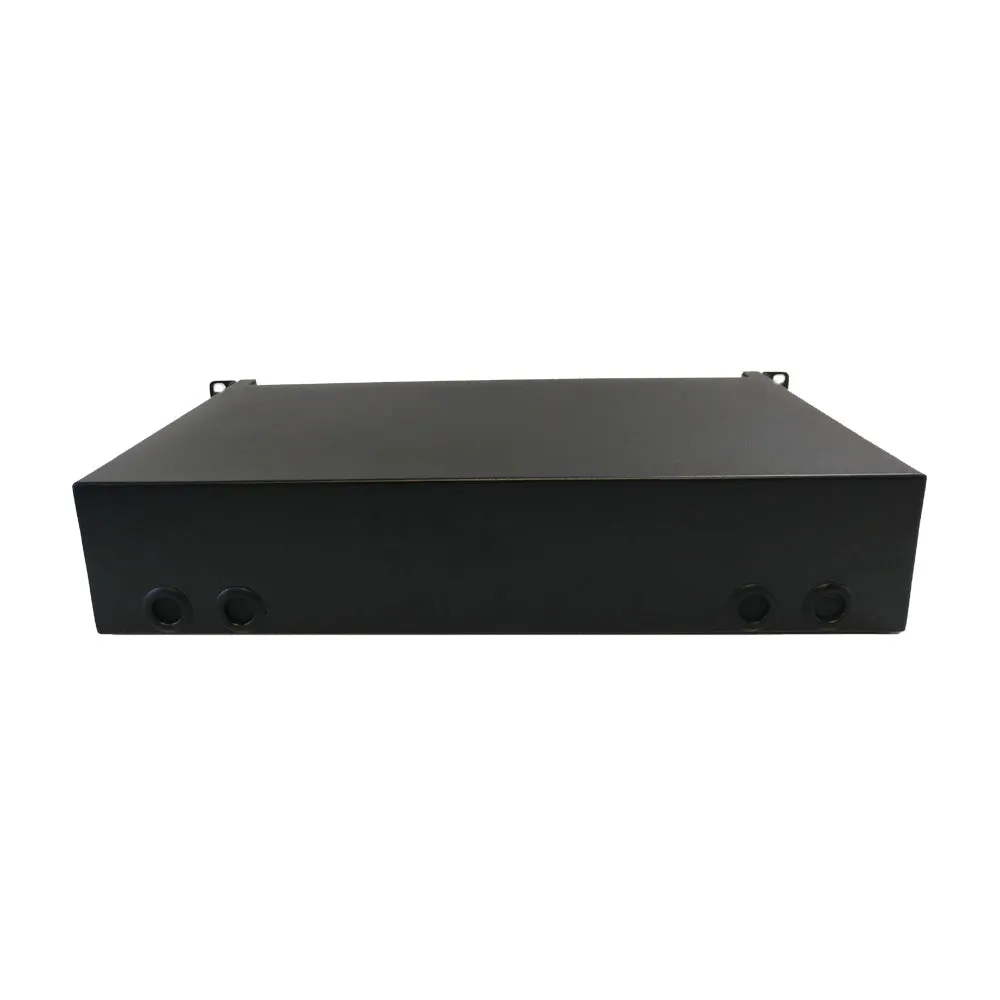

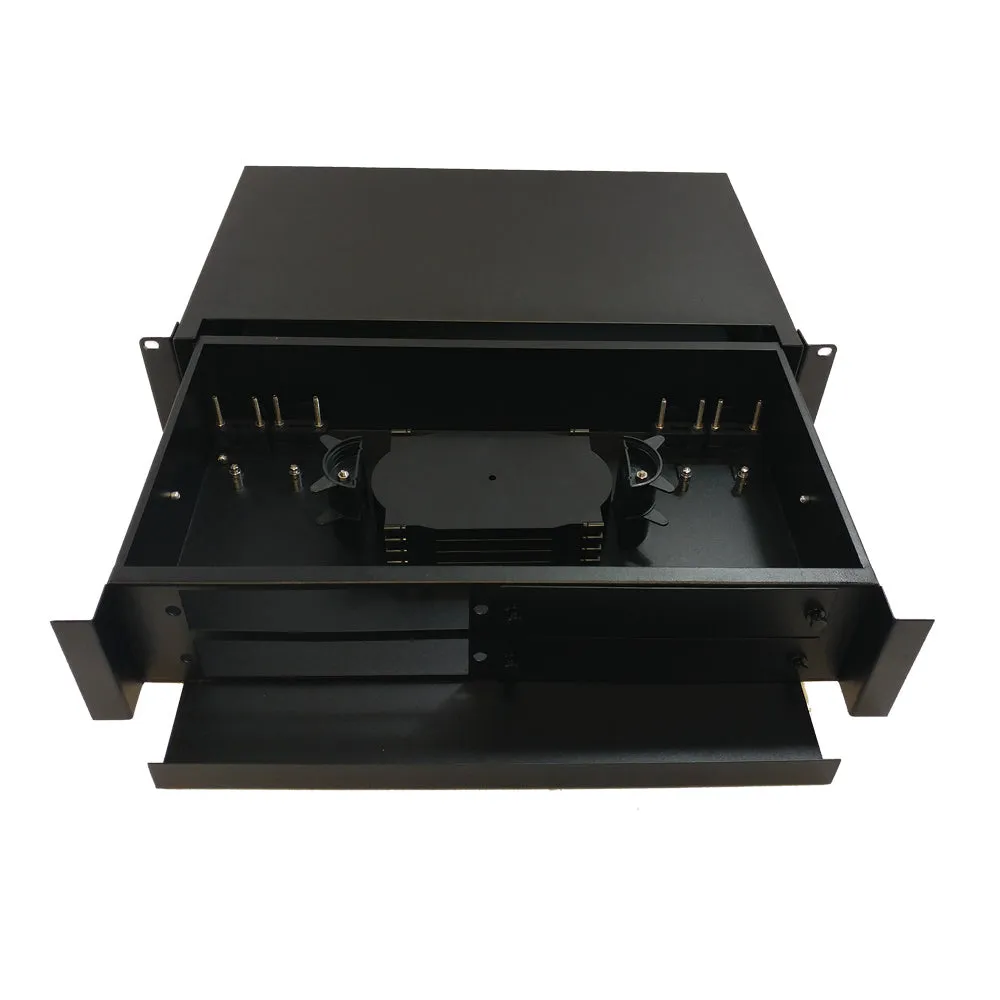

This 19 inch rackmount fiber optic enclosure is 2U in height, has a latching slide out tray for easy access and accepts up to two fiber adapter panels. It is used to interconnect fiber splices and terminated fiber cables. The unit comes with four 12-fiber splice trays, two cable routing clamps, 48 splice sleeves, one blank adapter panel and cable ties. Fiber adapter panels are sold separately.
| Physical Characteristics | |
|---|---|
| Color | Black (Powder Coat) |
| Material | Steel |
| Product Dimensions | 19" W 12.5" L (overall) 11" L (not including front tray) 2U H |
| Rackmountable | Yes |
| Compatible Adapter Panels and LGX Cassettes | |
| PP-FA604-6BK | |
| PP-FA604A-6BK | |
| PP-FA504-6BK | |
| PP-FA804-6BK | |
| PP-FA604-12BK | |
| PP-FA604A-12BK | |
| PP-FA504-12BK | |
| PP-FA804-12BK | |
| PP-FA204-6BK | |
| PP-FA204A-6BK | |
| PP-FA104-6BK | |
| PP-FA404-6BK | |
| PP-FA204-12BK | |
| PP-FA204A-12BK | |
| PP-FA104-12BK | |
| PP-FA404-12BK | |
| PP-FA208-6BK | |
| PP-FA208A-6BK | |
| PP-FA108-6BK | |
| PP-FA408-6BK | |
| PP-FA208-12BK | |
| PP-FA208A-12BK | |
| PP-FA108-12BK | |
| PP-FA408-12BK | |
| PP-FA200-6BK | |
| PP-FA200-12BK | |
| PP-FABNK-BK | |
| Splice Sleeve Compatibility | |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 12.0 lbs [5.4 kg] |

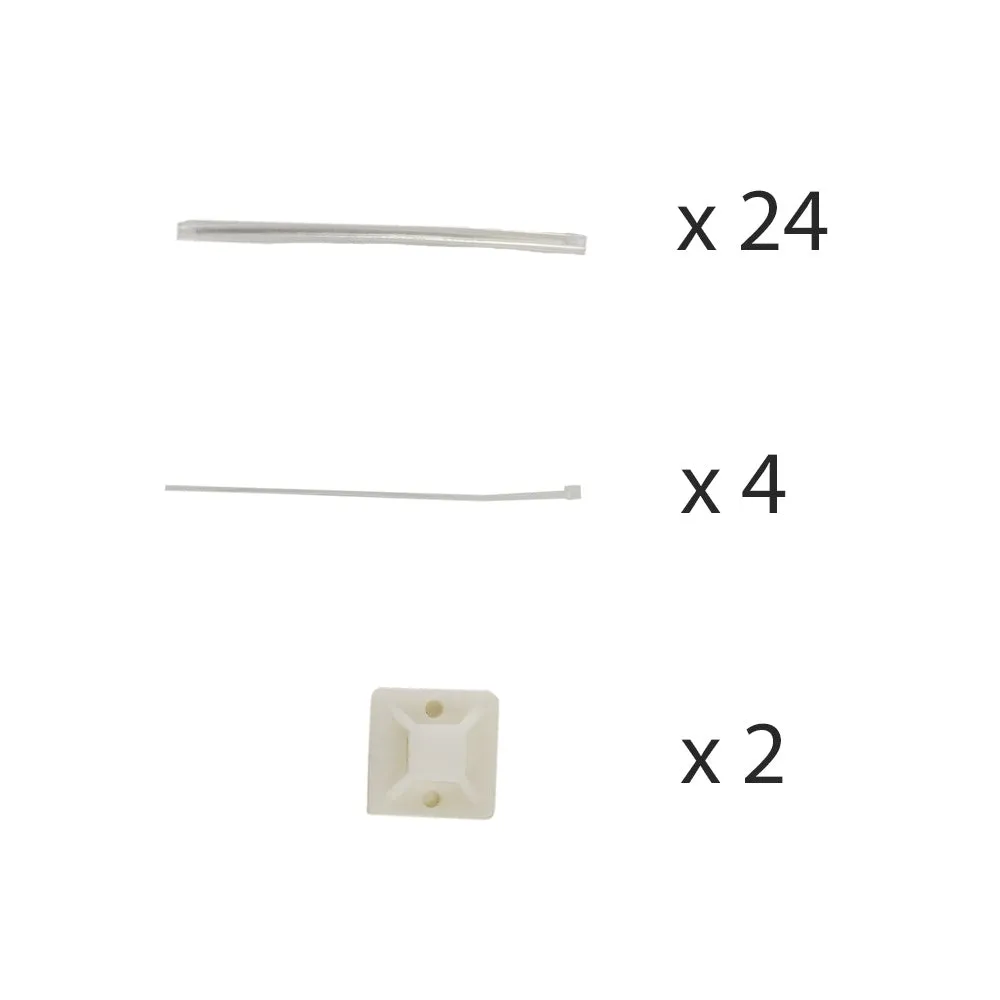

| Contents | |
| Included in Package | 1 - Fiber Enclosure |
| 2 - Cable Routing Clamps | |
| 4 - 12 Fiber Splice Trays | |
| 48 - Fiber Splice Sleeves | |
| 2 - Blank Adapter Panels | |
| 2 - Cable Tie Mounts | |
| 4 - Zip Ties | Warranty Information |
| Warranty | Limited Lifetime |
